Introduction
With Synergy SKY you have the ability to deliver quick interactions using your control panel or your phone (using GO). This guide shows you how.
To configure the "Meeting Controls" button, contact your admins and use this guide
From your control panel

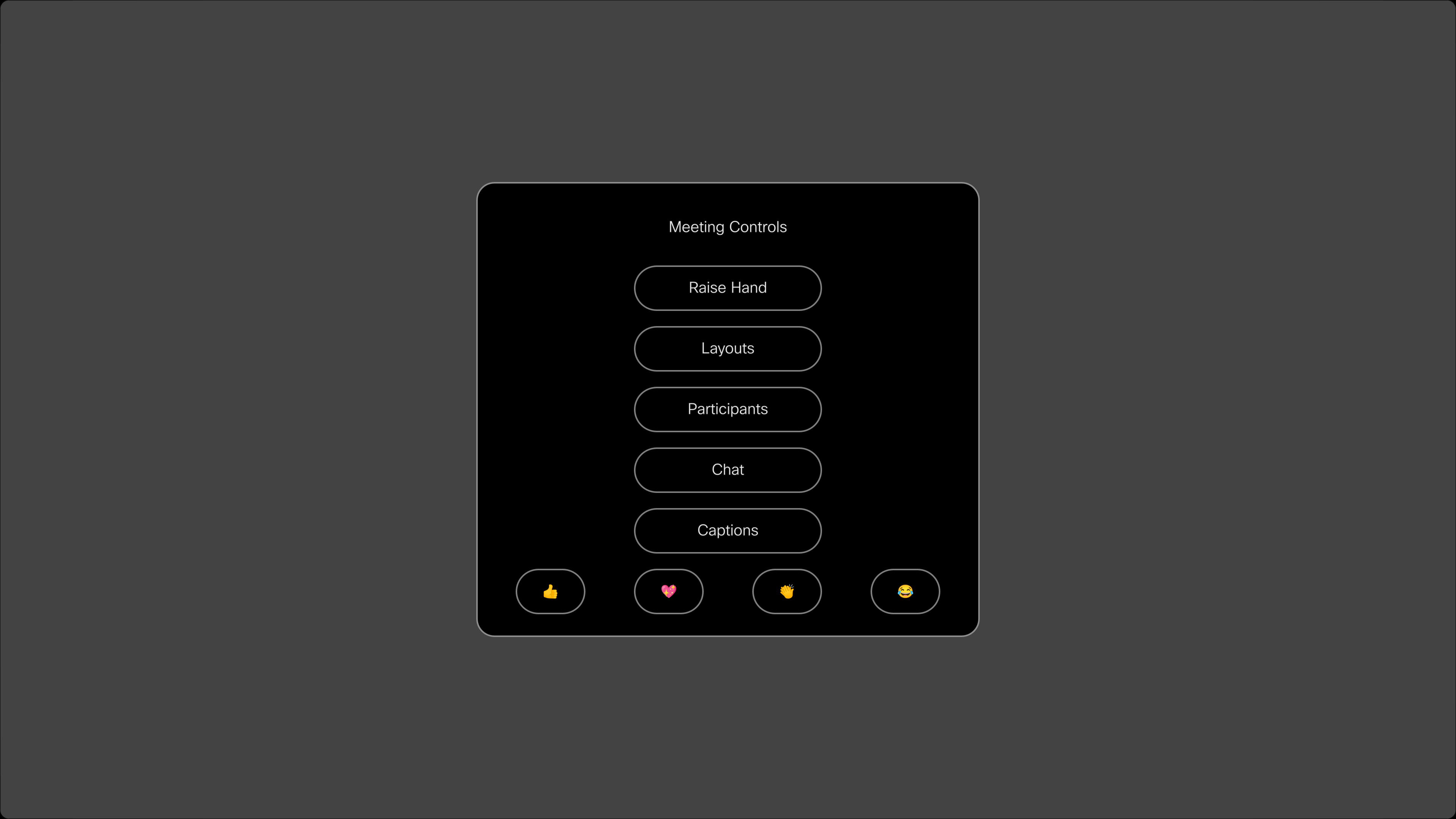

Some control panels will have a button which says "Meeting controls". It will have to be configured by your administrators. If you have it simply click on it and the meeting interactions will appear at the bottom of the user interface that appears.

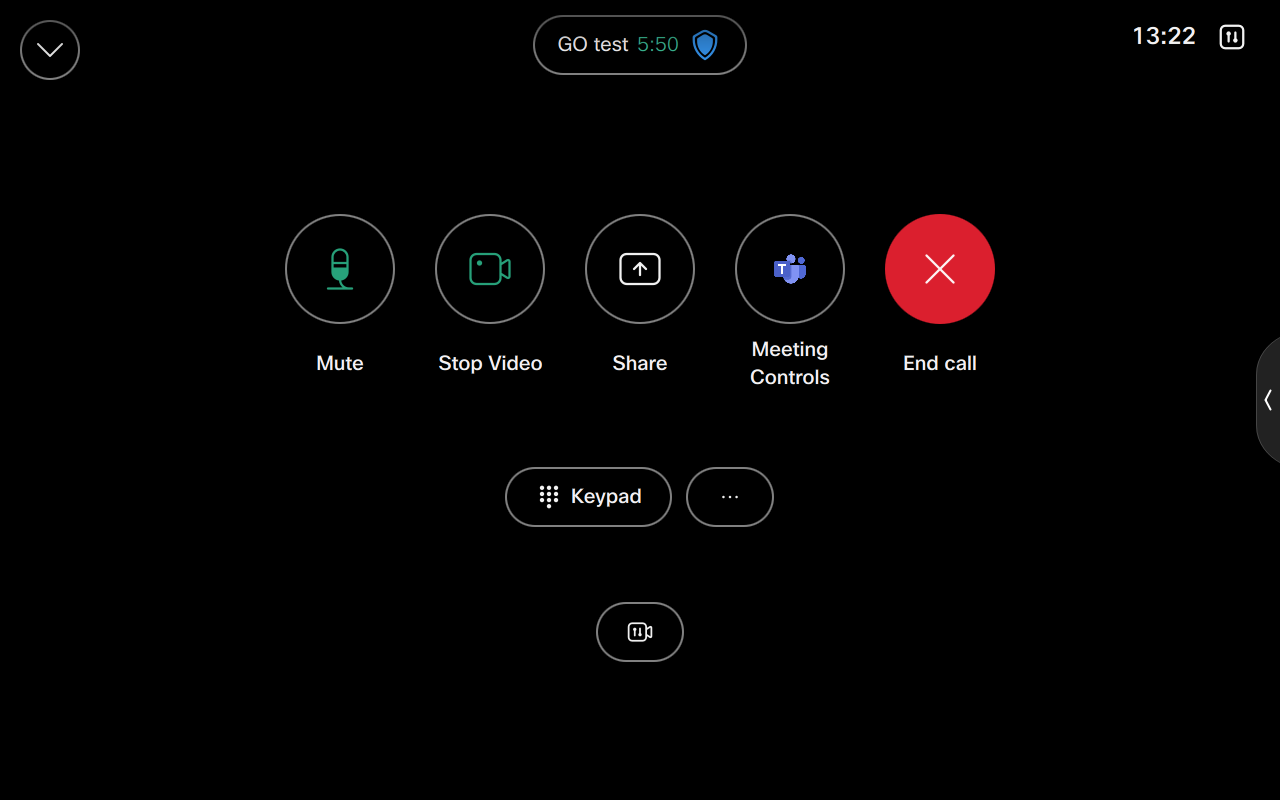

The picture beneath shows how the "Meeting Controls" button appear on a Cisco Touch 10 device after configuration. Depending on which meeting platform the meeting is hosted at, the image will change
On other devices, it may not be possible to configure such a button. In most systems there will be the possibility to open a keypad. Open this keypad and with the codes on the bottom of the page, you may interact with the meeting.

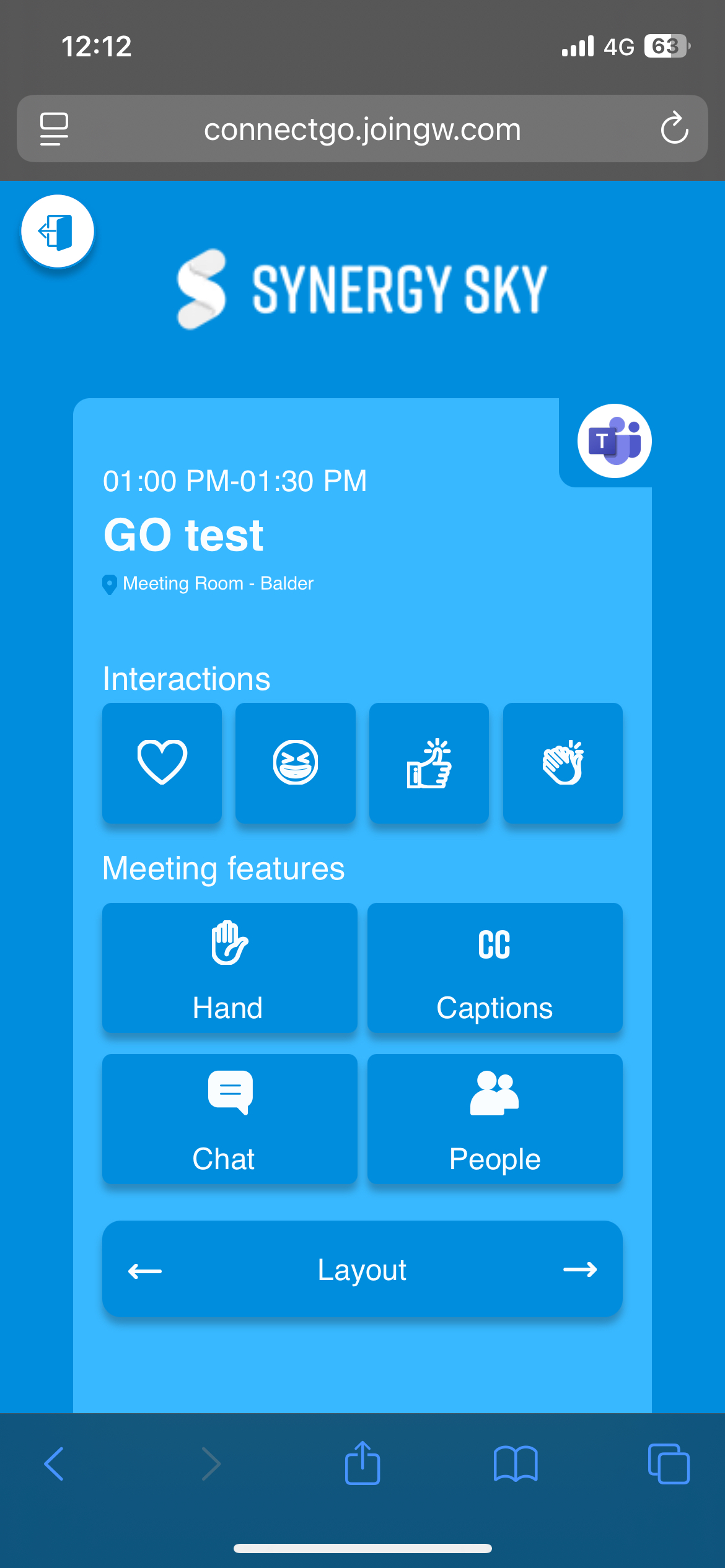

From Your Phone (GO)
Simply click the icons beneath "Interactions" to send a quick reaction
Use DTMF to Control Your Meetings
With Synergy SKY CONNECT, you can easily interact with Microsoft Teams, Zoom, and Google Meet meetings directly from any video conference endpoint using DTMF (Dual-Tone Multi-Frequency) signals. Just use the touch tones on your touch panel or the number keys on your remote control to manage meeting functions — no additional hardware or software required.
Available DTMF codes:
These codes are toggleable:
| Key | Action |
| 0 | Switch to the next layout |
| 1 | Raise or lower your hand |
| 2 | Show or hide the chat |
| 3 | Show or hide the participant list |
| 4 | Send a thumbs up 👍 |
| 5 | Send a heart ❤️ |
| 6 | Send applause 👏 |
| 8 | Show or hide closed captions |
Granular DTMF Codes:
For more precise control, use the following detailed codes:
| Key | Action |
| *10 | Raise or lower your hand |
| *11 | Raise your hand |
| *12 | Lower your hand |
| *20 | Show or hide the chat |
| *21 | Show the chat |
| *22 | Hide the chat |
| *30 | Show or hide the participant list |
| *31 | Show participants |
| *32 | Hide participants |
| *40 | Switch to the next layout |
| *41 | Next layout |
| *42 | Previous layout |
| *80 | Show or hide closed captions |
| *81 | Show closed captions |
| *82 | Hide closed captions |
| *91 | Thumbs up 👍 |
| *92 | Heart ❤️ |
| *93 | Applause 👏 |
| *94 | Laugh 😂 |
