Cisco Meeting Server (CMS) Integration

Introduction

This guide provides a step-by-step walkthrough for integrating Cisco Meeting Server (CMS) with Synergy SKY. By creating a connection between CMS and Synergy SKY, organizations can automate meeting joins, enable One Button To Push (OBTP) functionality, and streamline the scheduling experience across video conferencing endpoints.

Prerequisites

• Cisco Meeting Server Username and Password that can make API calls

Step-by-Step Guide

Adding Integration in Management SUITE

1. In Management SUITE, navigate to General Settings → Integration Settings

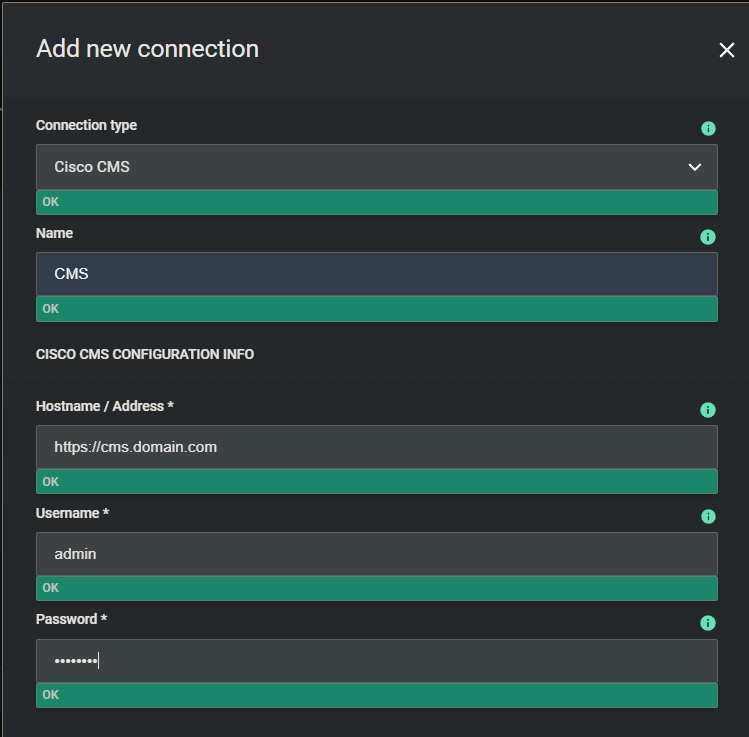

2. Click on ADD CONNECTION, Connection Type: Cisco CMS

3. It will allow you to add a name to the integration, including basic information
   You will need to input your CMS information here (hostname/address, username and password)

4. Click on TEST CONNECTION

5. Once tested successfully, click on SAVE

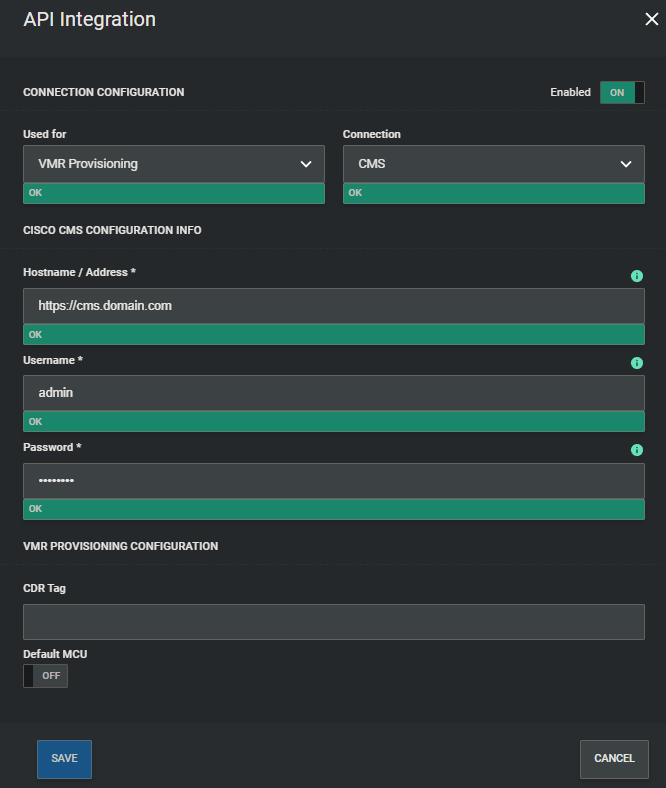

6. Click on ADD API INTEGRATION
7. Used for: VMR Provisioning
   Connection: Name of Integration provided
   The rest of the information will auto populate
   (optional): Add a CDR Tag and enabling Default MCU

8. Click on SAVE and SAVE CHANGES and deploy the config
